Liquid Processing & Filtration

Paste Kettle

Controlled preparation of starch paste, binders and viscous materials.

Paste Kettle
Liquid Processing & Filtration

Paste Kettle

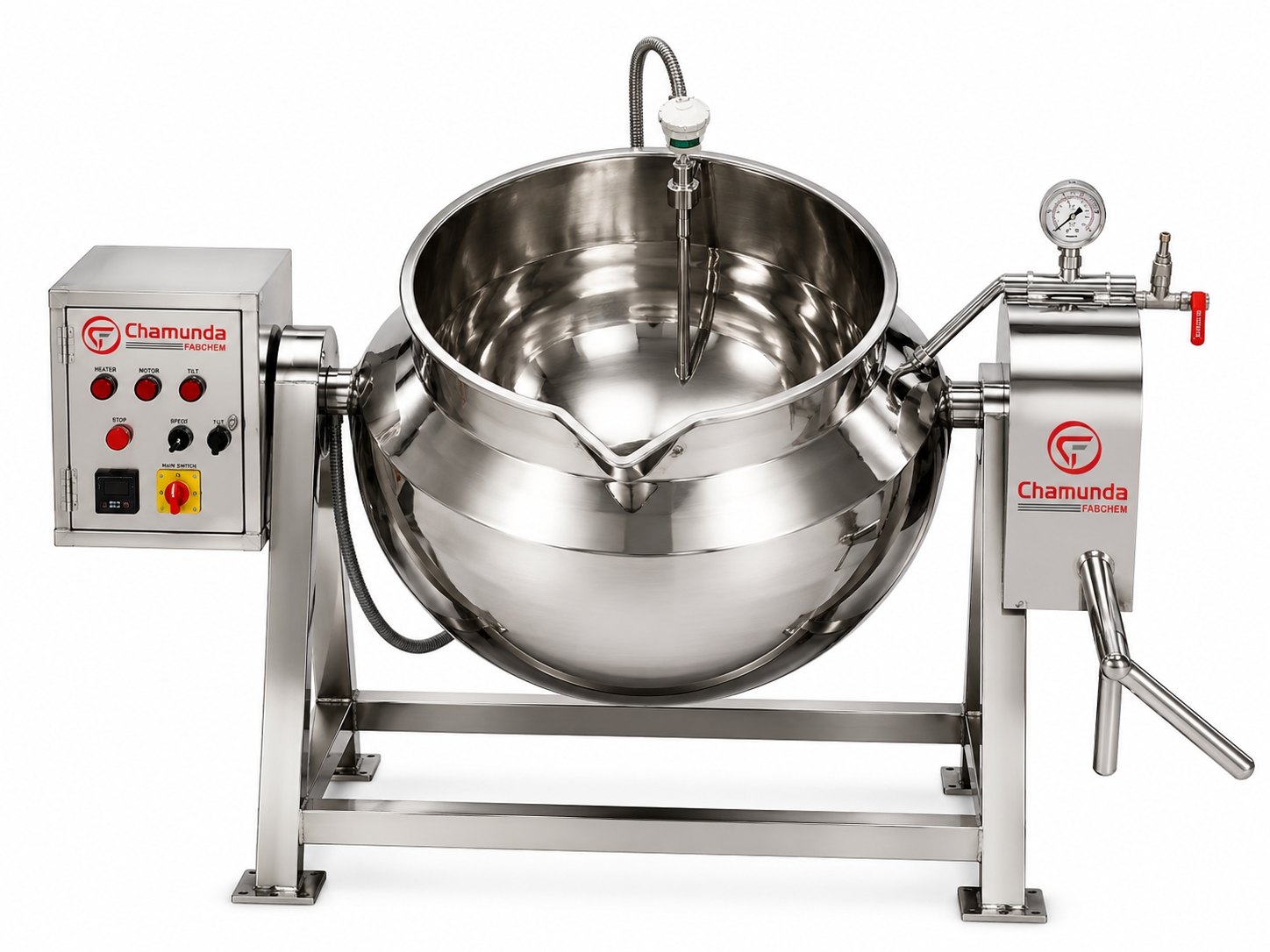

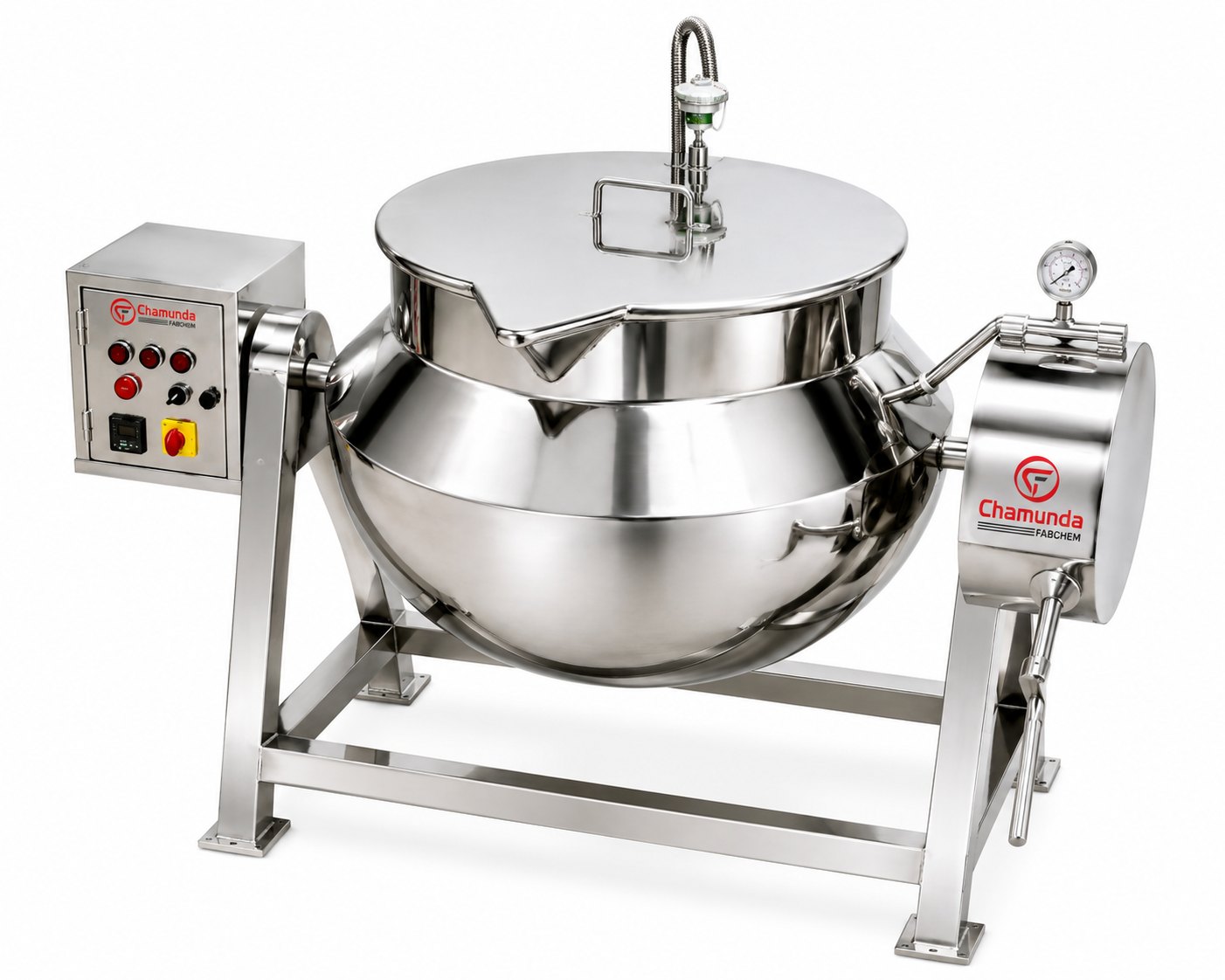

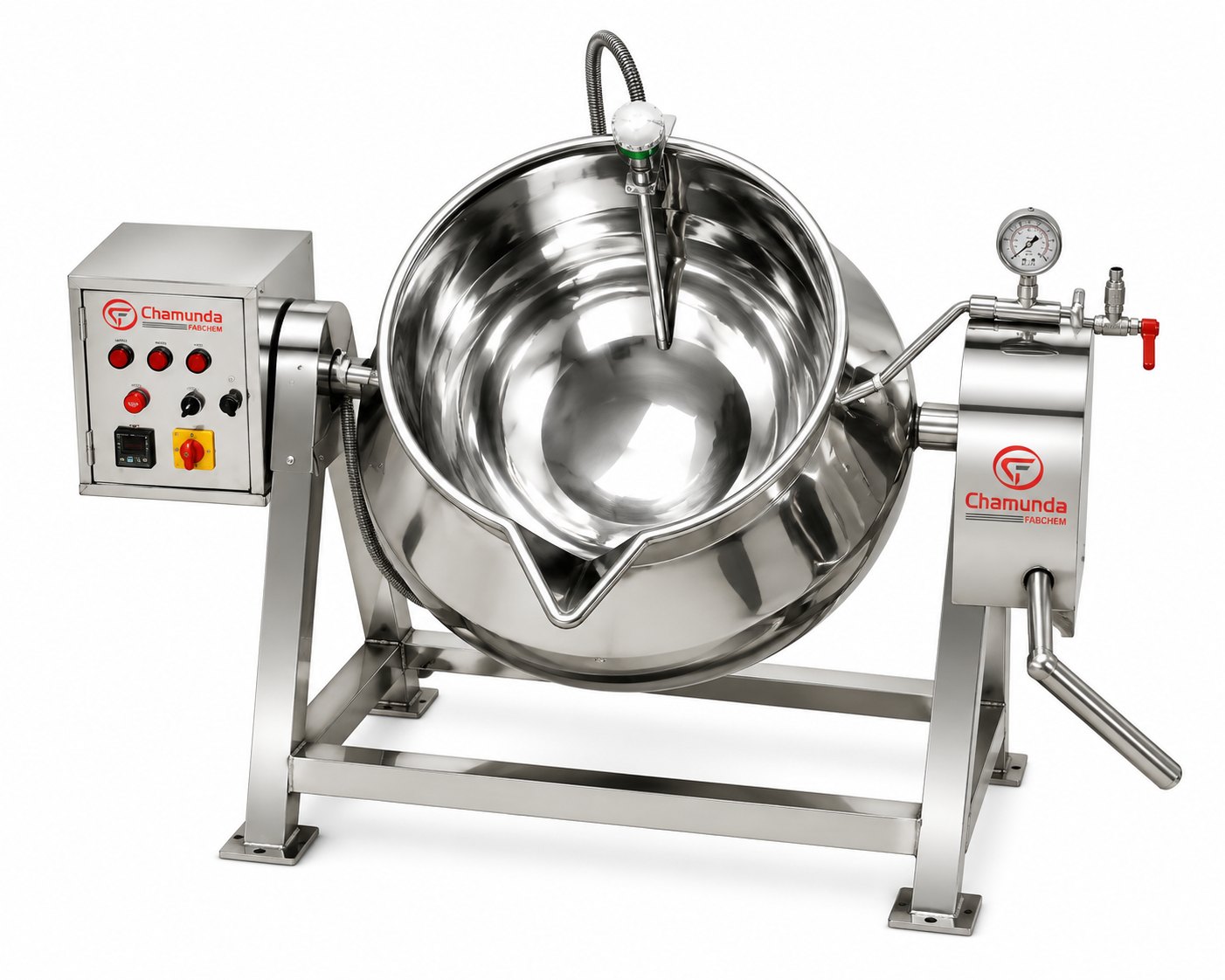

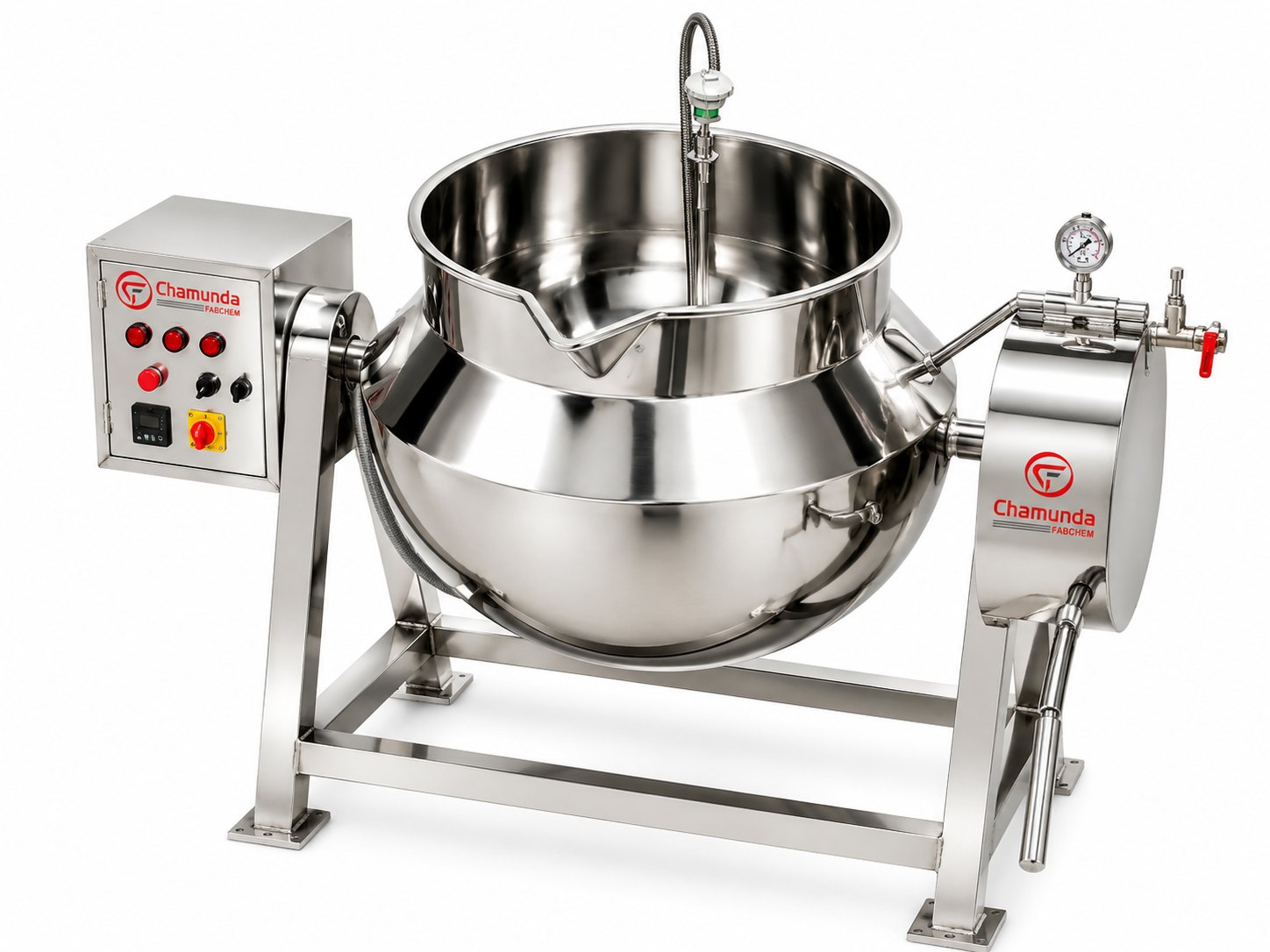

Paste Kettle is a jacketed vessel designed for the controlled preparation of starch paste, binders and other viscous materials used in pharmaceutical processing. Jacket heating and controlled agitation provide uniform heating and mixing, while a tilting or suitable discharge arrangement enables convenient, hygienic batch unloading.

Capacity range10 – 300 Kg
Heating mediaSteam / Electrical
AgitationAnchor / Scraper
Design buildcGMP

Key features

  • Jacketed vessel for uniform and controlled heating
  • Anchor-type agitator with scraper arrangement for effective mixing
  • Suitable for starch paste and pharmaceutical binders
  • Controlled temperature for consistent batch processing
  • Hemispherical vessel geometry for effective heat transfer
  • Insulated construction to reduce heat loss
  • Tilting or bottom-discharge arrangement for convenient unloading
  • Stainless-steel construction for hygienic processing

Automation & Compliance Options

  • PLC/HMI-based process control
  • Recipe and process parameter management
  • Data recording and process monitoring
  • 21 CFR Part 11-ready automation configurations
  • GAMP 5-aligned computerized-system documentation
  • CE certified configurations for applicable export requirements
  • FAT, DQ, IQ and OQ documentation
